Pneumatic Soap Molding Stamping Machine for Soap Bar Production and Shampoo Packaging

Place of Origin : China

Brand Name : UT

Condition : New

Product Type : Shampoo

Weight (KG) : 55

Showroom Location : United Kingdom, United States, Philippines, Indonesia, Spain

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Pressure vessel

Warranty : 1 Year

Key Selling Points : Easy to Operate

Applicable Industries : Hotels, Restaurant, Home Use, Food Shop

Use : mixer, cutting press, packing

Machine Type : Hydraulic

Application : Soap Logo Stamping

Product name : Soap Making Equipment Line

Raw Material : Soap Noddle

Keywords : Soap Logo Stamping Press Machine

Related machines : Soap Packaging Machine

Key words : Cold Press Soap Making Machine

Product : Soap Making Machine Bar Laundry

Related machine 2 : Soap Transparent Film Packing Machine

Price : Negotiation

MOQ : 1

Packaging Details : wooden box

motor : 220v/380v/415v/customzied

color : customzied

Contact Now

Product Description

hydraulic soap forming machine/pneumatic soap stamping machine

Pneumatic Soap Molding Stamping Machine for Soap Bar Production and Shampoo Packaging

Brief introduction:

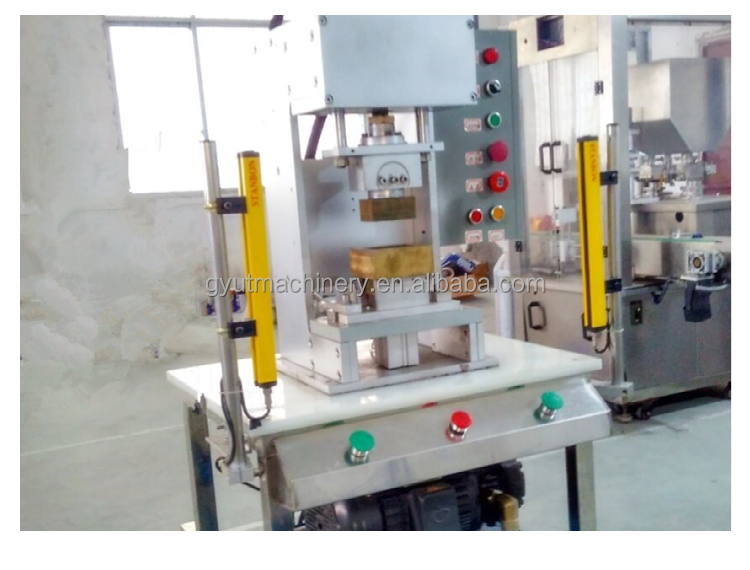

This soap stamping machine has light curtain protection device, which is an effective protection device and safer than protective guard, and can protect operator from danger.

It is safe and easy to operate, save labor and improve production.This machine can print different size and shape of soap without changing mold.

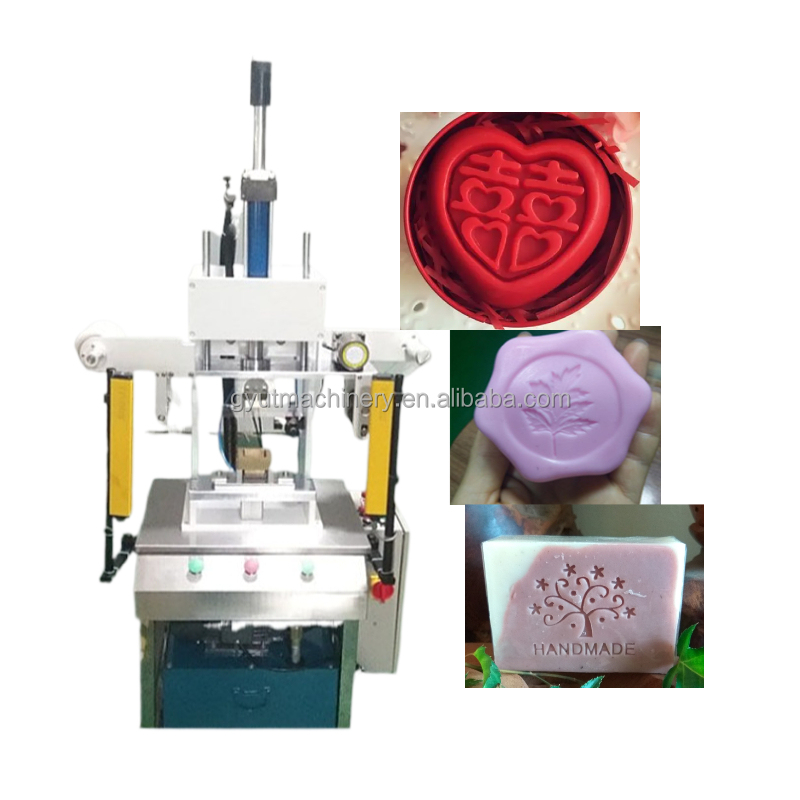

This machine is suitable for the formation of handmade soap. The lattice printing LOGO, flower, pressure, pressure label, different sizes, different sizes, and pattern soapmade soap can be formed.
Technical Parameters:
Pouring speed 35 yuan/minute
Power 2.2KW
Power hydraulic driver (equipped with a radiator)
Power 380V
Weight 230kg
Shapes 1000*840*1800mm
Material 45#mold steel, aluminum (sewing part)
Curm material 50mmX50mm stainless steel pipes

Applying:

This press machine is suitable for making soap,bath salts etc powder product.

The machine is sturdy and durable and easy to move. Its open structure makes the mold installation and adjustment very convenient, with simple operation and stable performance.

Features of soap machine :

1.With the function of automatic and manual, it’s convertible

2.With advanced technology, low energy consumption high speed, low noise and high efficiency

3.Activity crossbeam has safety limiter in both up and down directions

4.The machine mold material is aluminium alloy,no rust for long time use.

Technical parameters of soap machine :

Specification	Unit	UT-63A	UT-100A	UT-100B
Nominal force	Kn	630	1000	1000
Max pressure of hydraulic system	Mpa	25	25	25
Max. Opening height	mm	500	800	800
Slider effective stroke	mm	360	500	500
Working table size	mm	410*510	630*550	750*700
Nominal force of Ejection cylinder	Kn	100	200	200
Ejection stroke	mm	160	200	200
Slider working speed (empty travel)	Mm/s	100	100	100
Slider working speed (press)	Mm/s	5-10	5-10	5-10
Slider working speed (Return stroke)	Mm/s	90	90	90

All parameters can be made according to requirements

Pneumatic Soap Molding Stamping Machine for Soap Bar Production and Shampoo Packaging

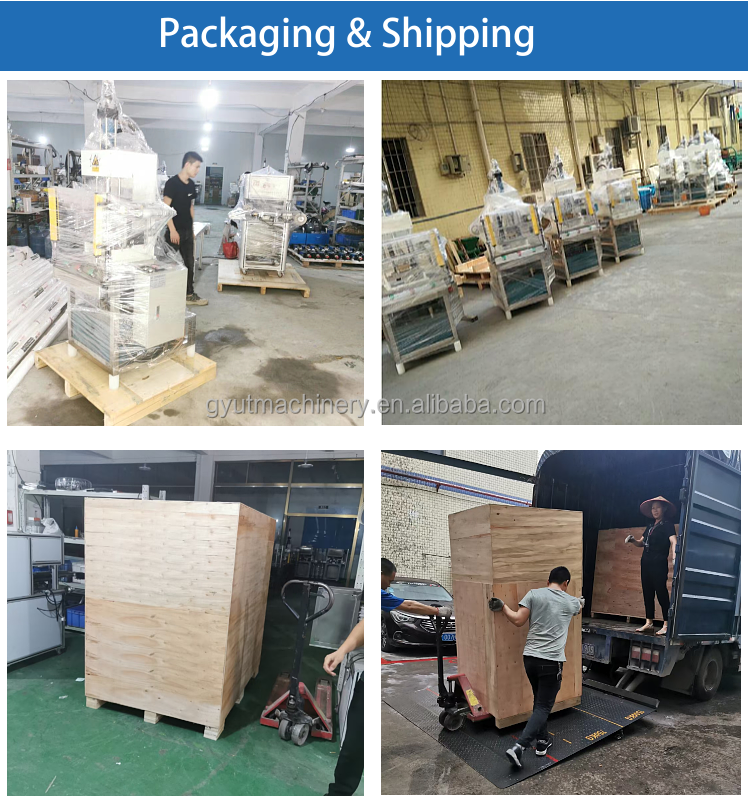

Packaging & Shipping

Pneumatic Soap Molding Stamping Machine for Soap Bar Production and Shampoo Packaging

Our Services

(1)Pre-sales service

a. Sales team will suggest suitable project.

b. Technical team analyse and design special molds for you.

c. Pick you up at airport, arrange hotel-booking.

d. Other travel arrangements.

(2)After-sales service

a. Assist you build up factory and production line.

b. Install and maintain machines.

c. Training your workers to achieve skillful operation.

d. Offer technical support through telephone or online videos at any time.

Pneumatic Soap Molding Stamping Machine for Soap Bar Production and Shampoo Packaging
